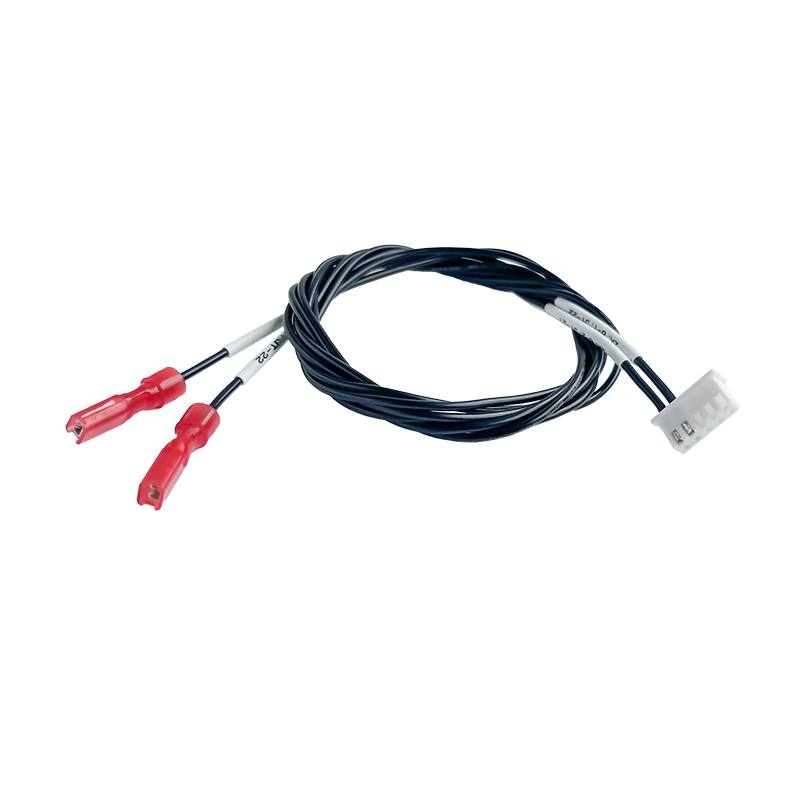

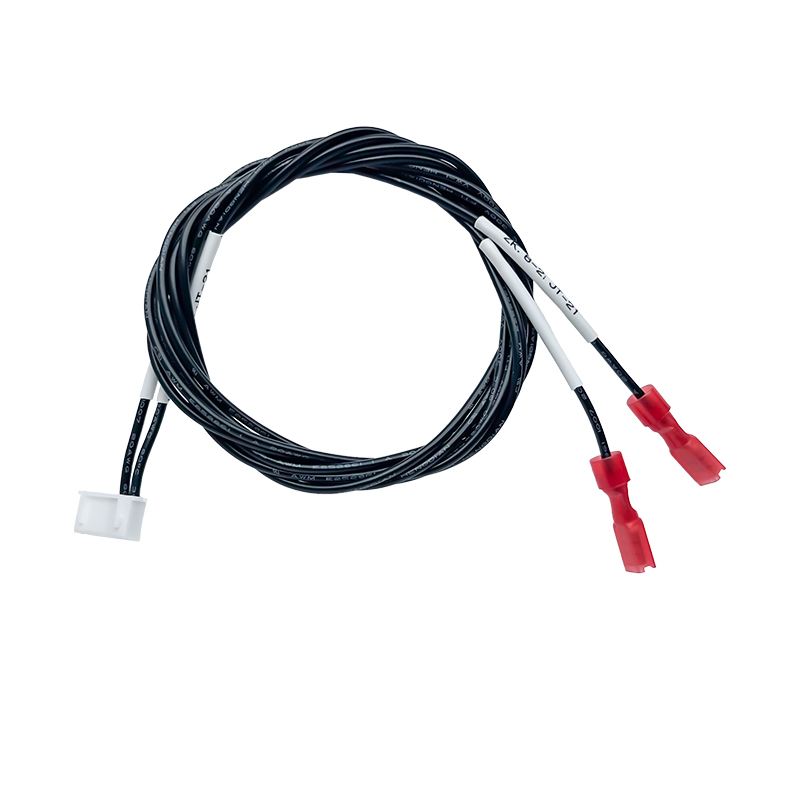

400mm Black Harness Assembly | XH-5P to FDD Crimp Terminals
This crimp terminal wiring harness is engineered for optimal performance in high-demand electrical environments. Utilizing standard UL1007 22AWG tinned conductors, the 400mm assembly features an XH-5P connector on one end and FDD spring-loaded cold-pressed terminals on the other. Designed with a focus on minimizing energy loss, it ensures highly efficient power and signal transmission. Its scientifically selected wire gauge guarantees safe operation without performance degradation, making it an ideal choice for complex industrial and new energy systems.
Specifications
| Parameter |
Specification |
| Product Type |
Harness Assembly with Crimped Terminals |
| Wire Standard |
UL1007 |
| Wire Gauge |
22 AWG |
| Color & Length |
Black, L=400mm (Customizable to any length) |
| Terminal Configuration |
One end XH-5P, the other end FDD spring-loaded cold-pressed terminal |
| Conductor Material |
High-purity tinned copper |
| Performance Profile |
Low impedance, optimized current-carrying capacity |
| Customization |
OEM/ODM supported for length, wire gauge, and terminals
|
Key Features:
- High-Efficiency Conductivity: Manufactured using premium tinned copper conductors. This optimized construction drastically lowers DC resistance, minimizing energy waste and maximizing transmission efficiency across your system.
- Optimized Thermal Stability: Engineered with a scientifically selected 22AWG wire and advanced insulation to ensure superior heat dissipation. It maintains safe operating temperatures and stable power delivery even under heavy, continuous current loads.
- Robust Dual-Connector Setup: Features a precise XH-5P connector on one side and secure FDD spring-loaded cold-pressed terminals on the other. This combination guarantees a tight, fail-safe, and vibration-resistant connection for complex wiring environments.
Applications:
- New Energy Equipment: Reliable internal wiring configurations tailored for modern renewable energy modules and solar integrations.
- Power Control Cabinets: Safe and highly efficient routing solutions for industrial distribution units and automated switchgear.
- Electronic Communication Devices: Stable power delivery systems designed for telecommunications hardware and base stations.
- EV Charging Stations: Durable, high-capacity interconnects designed to handle the continuous loads of electric vehicle charging infrastructure.
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
- Technical support online service provided.
- OEM available.
- Our product with test report and certification
- Our product with 3 year warranty.
Packing & Delivery:
FAQ:
1. What is the temperature and voltage rating?
It uses standard UL1007 22AWG wire, rated for 80°C and up to 300V, ensuring safe operation in high-demand environments.
2. How do you ensure connection reliability?
Every harness undergoes 100% electrical continuity checks and mechanical pull-force testing before shipment to guarantee secure, flawless connections.
3. What is the MOQ and lead time?
We offer flexible MOQs to support your needs. The typical lead time for custom or bulk orders is 7 to 15 working days.
