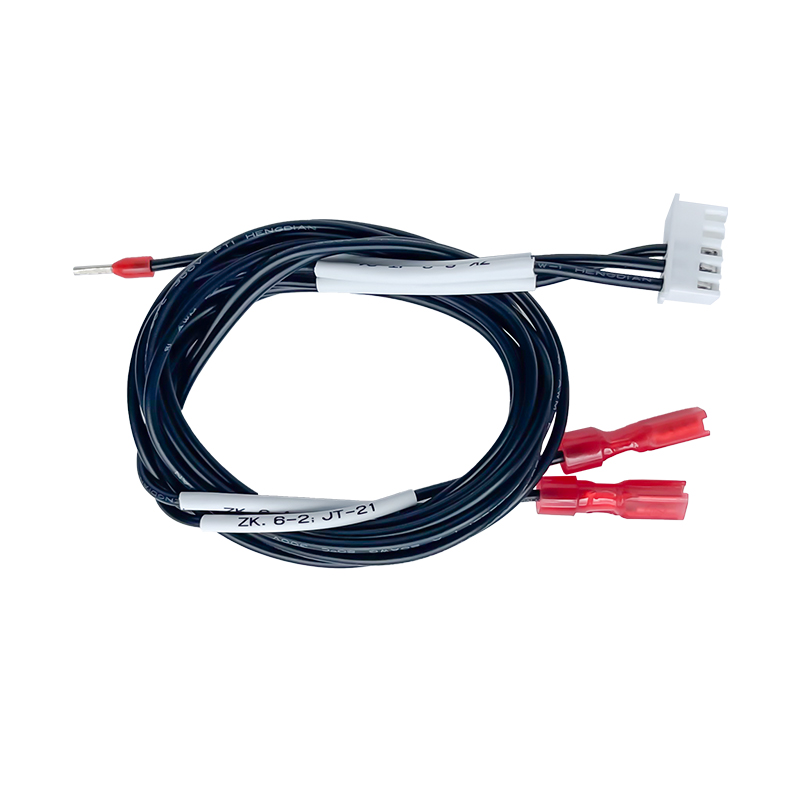

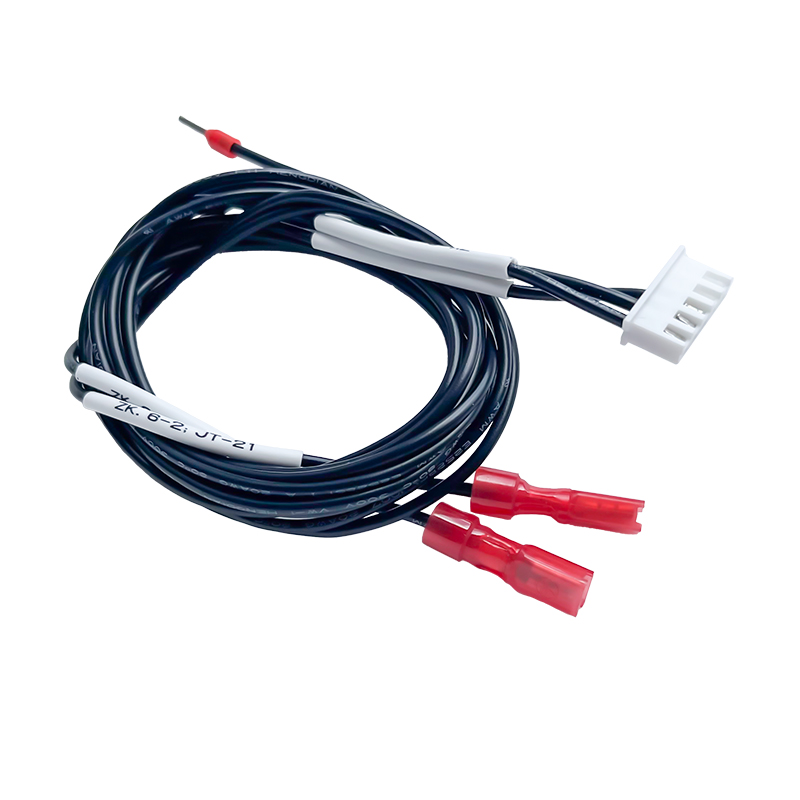

UL1007 20AWG Wire Harness with XH-5P Connector and Tubular/FDD Terminals
Featuring a high-purity tinned copper conductor, it ensures minimal signal loss and maximum power efficiency. One end is equipped with a high-grade XH-5P connector, while the other features a hybrid of FDD spring-loaded terminals and tubular (ferrule) terminals. This assembly is engineered to maintain stable performance and controlled temperature rise, even in demanding electrical environments.
Specifications
| Parameter |
Specification |
| Product Type |
Tubular & FDD Crimped Terminal Wire Harness |
| Wire Standard |
UL1007 |
| Wire Color |
Black, L=600mm (Customizable to any length) |
| Conductor Material |
High Purity Tinned Copper |
| Connectors / Terminals |
FDD Female Disconnect + Tubular/Ferrule Terminals |
| Thermal Performance |
Controlled temperature rise under continuous load |
| Customization |
Length fully customizable upon request |
| Key Advantages |
Low DC resistance, maximized power efficiency |
Key Features:
- Superior Conductivity with Tinned Copper: Our wire harnesses utilize premium-grade tinned copper conductors that offer exceptional corrosion resistance and high conductivity. The precision crimping process reduces DC resistance to the lowest possible levels, ensuring that energy loss is minimized and your equipment operates with maximum efficiency.
- Expert Thermal & Current Management: Safety in high-performance equipment starts with thermal control. By combining scientific wire gauge selection (20AWG) with professional-grade insulation, this harness is optimized for excellent heat dissipation. It is designed to handle continuous current loads without performance degradation or overheating, guaranteeing long-term system reliability.
-
Hybrid Terminal Configuration for Versatility: To meet the complex wiring needs of modern control systems, this harness features an XH-5P connector for PCB interface, combined with FDD terminals and tubular (ferrule) terminals on the opposing end. This configuration provides a secure, vibration-resistant connection, making it ideal for everything from power cabinets to charging stations.
Applications:
- New Energy Equipment: Reliable internal wiring for solar inverters and energy management systems.
- EV Charging Piles: Durable connections for charging station control units.
- Power Control Boxes: Organized and high-efficiency wiring for industrial power distribution cabinets.
- Electronic Communication Equipment: Stable power and signal transmission for networking hardware and base stations.
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
- Technical support online service provided.
- OEM available.
- Our product with test report and certification
- Our product with 3 year warranty.
Packing & Delivery:
