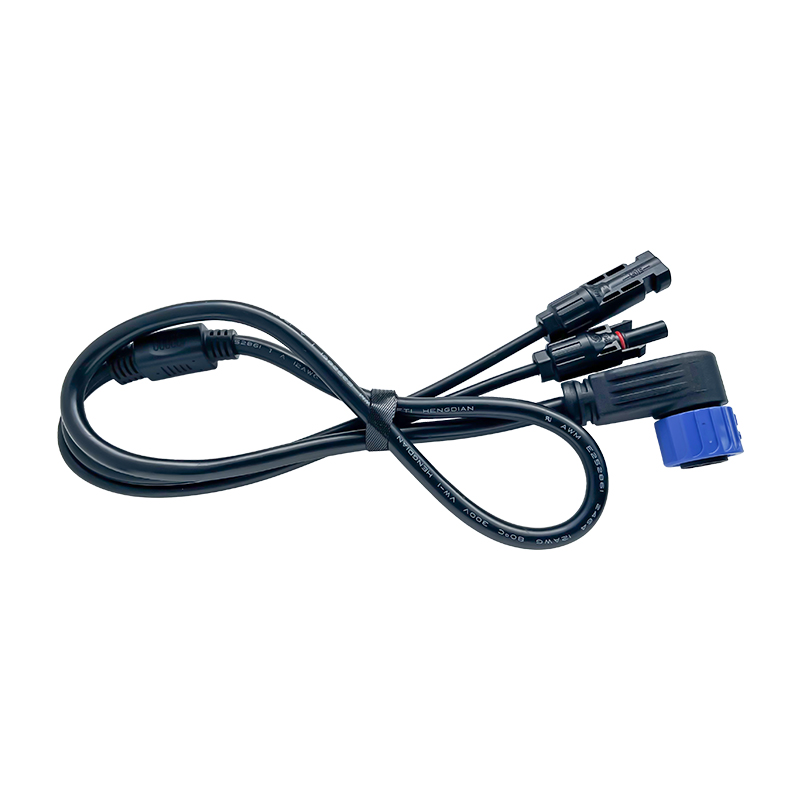

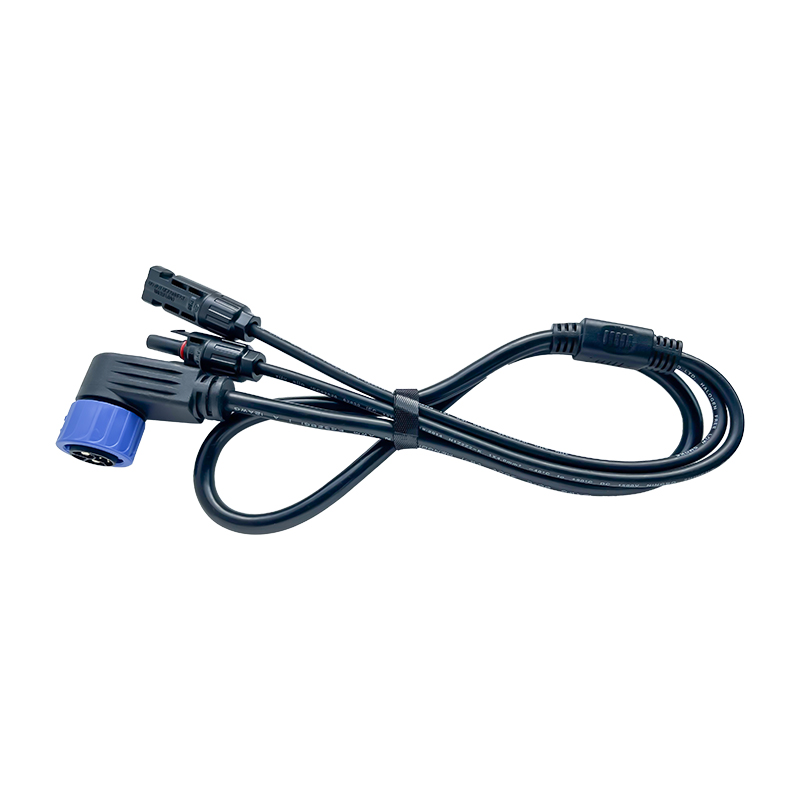

Optimize your photovoltaic and renewable energy systems with our high-performance M23 Elbow Parallel Cable. Designed specifically for the New Energy sector, this wiring harness features a robust M23 8-pin self-locking male connector (90° right-angle) that splits into standard MC4 male and female connectors. Engineered with high-purity tinned conductors, it ensures low resistance and reliable power transmission for inverters and energy storage applications.
Key Features & Benefits
-
- High-Efficiency Transmission: Utilizing high-purity tinned conductors and precision manufacturing processes, this cable achieves low DC resistance, minimizing energy loss during transmission to maximize system efficiency.
- Optimized Thermal Performance: Through scientific wire gauge selection and advanced heat dissipation design, the harness ensures a controllable temperature rise even under continuous high-current operation, preventing performance degradation over time.
- Secure & Flexible Connection: Features an M23-8 Locking Pin Male (90°) connector for a secure, self-locking vibration-proof connection, ideal for tight spaces due to its elbow design.
- Industry Standard Compatibility: The tail end splits into a 4mm² Solar PV Cable terminated with MC4 Male and Female connectors, ensuring seamless integration with standard solar modules and inverters.
- Customizable Design: While the standard length is 720mm, we offer customizable lengths to meet the specific layout requirements of your installation.
Cable Structure & Electrical Specs
-
- Main Cable: UL2464 12 AWG (2-Core) Red/Black Wire. This robust jacket provides excellent protection and durability.
- Split Cable: Professional-grade 4mm² Solar PV Cable, designed for outdoor exposure and high-voltage photovoltaic environments.
- Conductor Material: High-purity tinned copper for enhanced conductivity and corrosion resistance.
Connector Configuration
Typical Applications
-
New Energy Wiring Harnesses.
-
Solar Inverter AC/DC Connections.
-
Photovoltaic (PV) Energy Storage Systems.
-
Industrial Automation requiring parallel signal/power distribution.
Specifications
| Parameter |
Specification |
| Product Name |
M23 Elbow Parallel Cable (M23弯头并机线) |
| Category |
New Energy Wiring Harness |
| Connector A |
M23-8 Locking Pin Male, 90° Elbow |
| Connector B |
MC4 Male & Female Connectors |
| Main Wire Spec |
2464 #12 AWG, 2-Core (Red/Black) |
| Split Wire Spec |
4mm² Solar PV Cable |
| Standard Length |
L=720mm (Customizable) |
| Conductor |
High-Purity Tinned Copper |
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
- Technical support online service provided.
- OEM available.
- Our product with test report and certification
- Our product with 3 year warranty.
Packing & Delivery:
FAQ
Q: Can the cable length be customized?
A: Yes, the standard length is 720mm, but we support customizable lengths to fit your specific project needs.
Q: What makes this cable suitable for high-current applications?
A: We use high-purity tinned conductors and optimized wire gauges (#12 AWG main / 4mm² split) to ensure low DC resistance and controllable temperature rise under continuous load.
Q: Is the M23 connector straight or angled?
A: This assembly features a 90° Elbow (Right Angle) M23 connector, which helps in managing cable routing in compact spaces.
Q: What specific wire types are used for the main and split sections of this harness?
A: The main body of the assembly uses UL2464 #12 AWG 2-Core (Red/Black) wire for robust power transmission. This transitions into specialized 4mm² Solar PV cable at the split end, ensuring full compatibility with standard photovoltaic requirements.
Q: How does the cable design ensure long-term stability under high loads?
A: The harness features a scientific wire gauge selection and optimized heat dissipation design. This ensures that the temperature rise remains controllable during continuous high-current operation, meaning the performance does not degrade over time.
